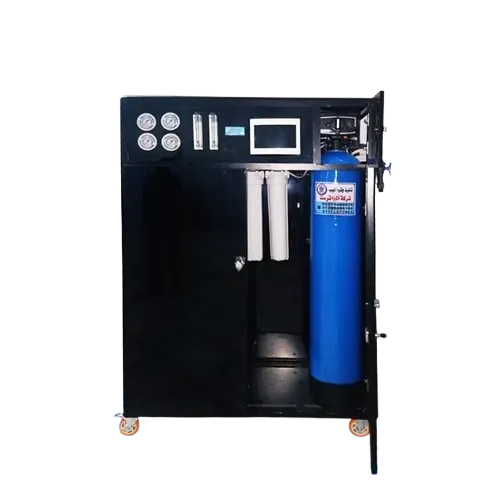

K1000V Water Treatment Unit

A high-performance water treatment system with a production capacity of 1000 GPD (equivalent to 3000 liters), designed with advanced filtration and purification technologies to remove up to 90% of dissolved salts.

Technical Specifications:

• Dimensions:
• Height: 120 cm (Special size 100 cm available upon request)
• Depth: 60 cm
• Width: Custom design
• Origin: European components with a locally manufactured aluminum frame.
• Production Capacity: 1000 GPD.
• Salt Rejection Rate: Up to 90%.

External Components:

• Flow meter to measure treated water and wastewater output.
• 4 pressure gauges for stage monitoring.
• Control panel for operation management.
• Aluminum & cladding body with wheels for easy mobility.

Internal Components & Treatment Stages:

1. 10×54" multi-media vessel (gravel, sand, carbon) – automatic.
2. 20-inch micron filter for removing sediments and rust.
3. 20-inch carbon block filter for removing organic matter and odors.
4. High-pressure pump for RO membrane feed.
5. One RO membrane (1000 GPD) for salt separation.
6. Stainless steel housing.
7. Medical-grade UV sterilizer – 5 GPM.
8. Solenoid valves.
9. Low-pressure switch to protect the unit in case of water supply failure.
10. All necessary fittings, valves, and high-pressure hoses.

Installation Requirements (by customer):

• Water supply with 1-inch diameter at 4 bar pressure.
• Drain connection with 1.5-inch diameter behind the unit.
• Two 220V power outlets behind the unit.
• Storage tank for treated water.
