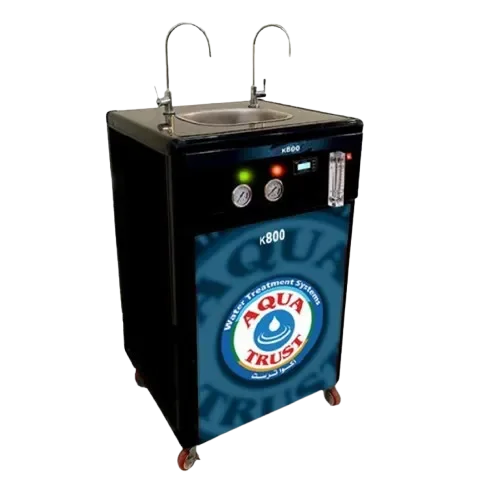

Product K800A Trust

High-Performance Water Purification & Desalination Unit

This unit is designed for professional water treatment, delivering a daily output of 800 gallons (2,000 liters) and handling salinity up to 2000 P.P.M.

Operates with a multi-stage treatment system: Pre-filtration + RO (Reverse Osmosis) desalination.

Technical Specifications:

• Dimensions: Height 120 cm × Width 68 cm × Depth 65 cm.
• Capacity: 800 GPD (2,000 liters/day).
• Salt Tolerance: Up to 2000 P.P.M.

External Components:

• TDS analysis screen for salt level, electrical conductivity (µS), and temperature (°C).
• Flowmeter to measure treated water output.
• Two fault indicator lights.
• Two pressure gauges for pump monitoring.
• Main power ON/OFF switch.

Internal Components & Treatment Stages:

1. 20" Micron filter to remove dirt, rust, and particles.
2. 20" Granular Carbon filter to remove chlorine, alum, and odors.
3. 20" Carbon Block filter to remove organic materials and gases.
4. Two RO membranes (400 GPD each) for salt separation.
5. Two jumbo post-carbon safety filters.
6. Two water booster pumps.
7. Two 24V pump adapters with protection.
8. Low Pressure switch to stop the unit when water supply is cut.
9. High Pressure switch to stop the unit when the tank is full.
10. Solenoid valve to stop wastewater when the tank is full.
11. 11-gallon pressure tank.
12. Two high-quality luxury hand-mixer faucets.
13. Stainless steel sink.
14. Spanish black countertop to support sink and faucets.

Installation & Execution: Aqua Trust
