Product K800 Trust

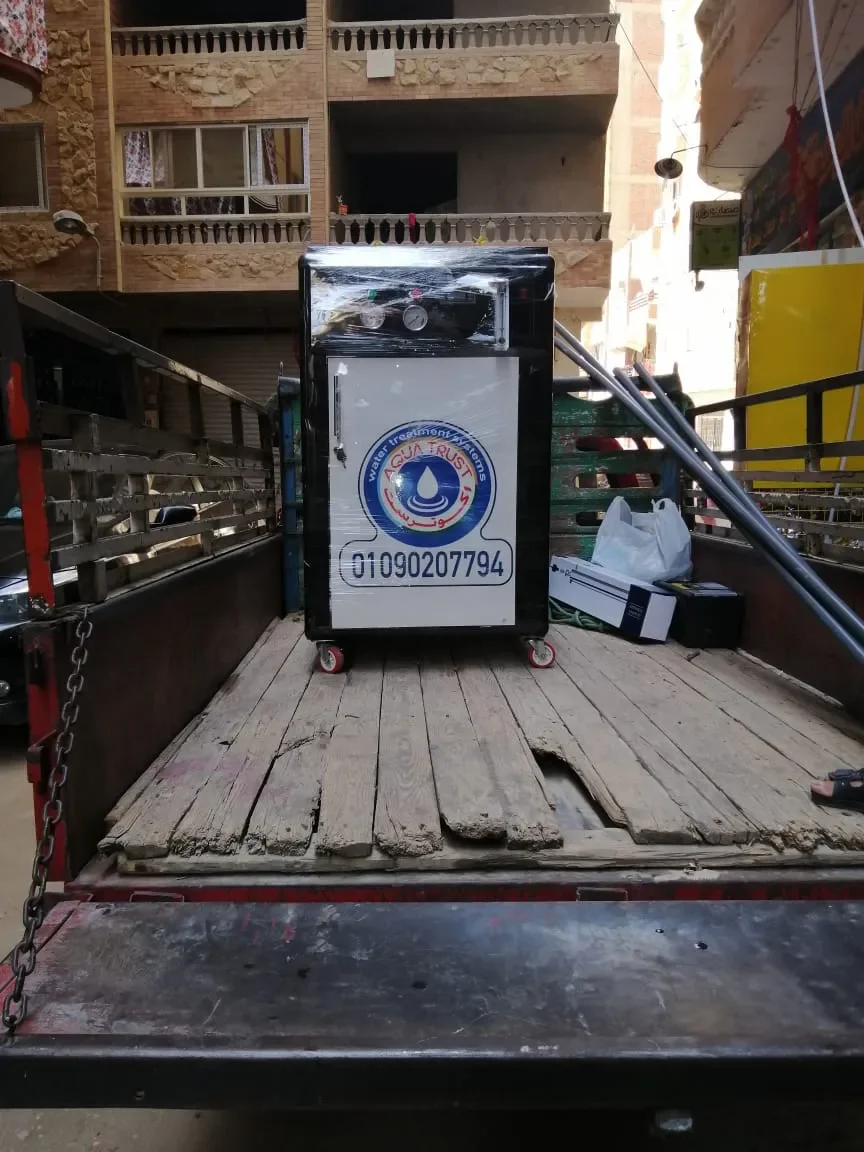

K800 Water Treatment Unit – by Aqua Trust

The K800 unit is engineered for comprehensive water treatment, offering a high production capacity of 800 gallons per day (2400 liters). It combines advanced purification technologies including pre-filtration, reverse osmosis (R.O), and UV sterilization for maximum water quality.

Technical Specifications:

• Origin: All internal components made in Taiwan.
• Membranes: Korean-made membranes.
• External Housing: Locally manufactured aluminum body.
• Dimensions:
• Height: 120 cm (custom sizes available upon request).
• Width: 68 cm.
• Depth: 60 cm.
• Salt Tolerance: Up to 2000 PPM, removing 90% to 98% of source salts.
• Treatment System: Pre-filtration + Reverse Osmosis (R.O) + UV Sterilization.

External Components:

1. Analysis screen for TDS, electrical conductivity (EC), and temperature readings (optional).
2. Flow meter to measure treated water output.
3. Fault indicator lights.
4. Motor pressure gauges.
5. Main power ON/OFF switch.

Internal Treatment Stages:

1. 20" Micron filter for removing particles and sediments.
2. 20" Granular Activated Carbon filter for chlorine, taste, and odor removal.
3. 20" Carbon Block filter for organic matter and gas removal.
4. Eight membranes for salt separation.
5. Two post-carbon safety filters for taste, color, and odor improvement.
6. 7.7 UV sterilization unit for disinfection.
7. Pump for water circulation through membranes.
8. Adapter for motor operation and protection.
9. Low-pressure switch to shut down the unit when water supply is cut.
10. High-pressure switch to stop the unit when the tank is full.
11. High-quality Lux hand mixer faucet for use or sampling.
12. Salinity adjustment valve.
13. Fully enclosed aluminum housing for protection and aesthetics.

Installation & Execution: Aqua Trust.
