18 Cubic Meter/Day Desalination Plant – Aqua Trust

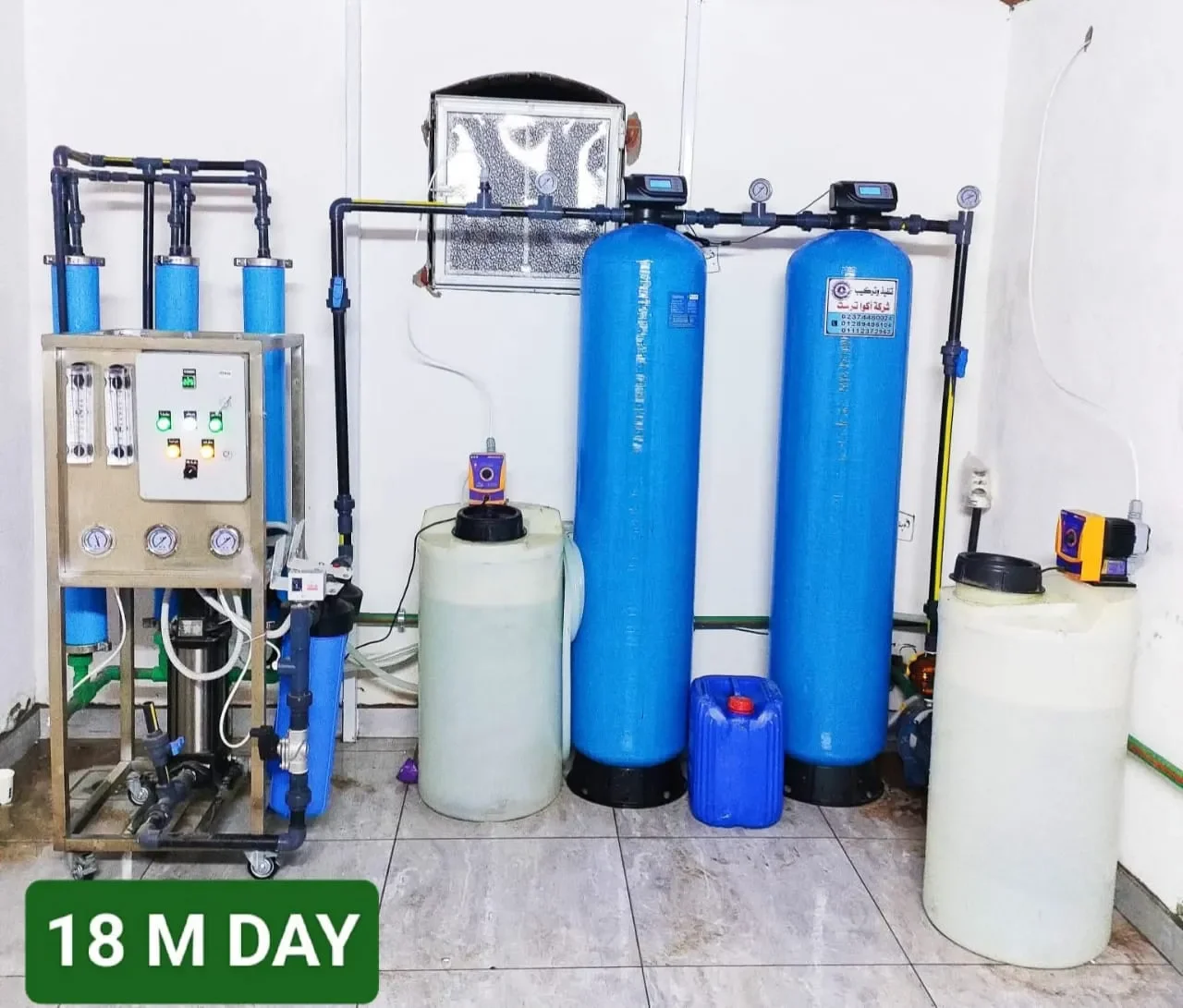

Aqua Trust Desalination, Purification & Sterilization Plant with a capacity of 18 m³/day (approximately 750 L/h), designed to provide high-purity drinking water using advanced treatment technologies.

Main Components & Specifications:

• Initial stainless steel pump, Italian-made, 2 HP, Hidrotec / Dianapro brand or equivalent Flomac (automatic).
• Chlorine dosing pump (Italian/Indian) with 60L chemical tank + 2 kg chlorine granules for raw water disinfection.
• Automatic digital sand filter 14×65 with graded sand and gravel for turbidity removal.
• Automatic digital carbon filter 14×65 with original Jacobi Swedish carbon for chlorine, organics, and odor removal.
• Anti-scalant dosing pump (Italian/Indian) with 25L tank to prevent salt scaling on the membrane.
• 20” jumbo housing + 2 jumbo poly cartridges (5 micron) for fine particle removal.
• Multi-stage pump, 3 HP, Liyson brand or equivalent, for high-pressure water feed.
• Stainless steel membrane housing (4”) with RO membrane for 90–99% salt rejection.
• Solenoid valve, low-pressure switch, pressure gauges, and 10-gallon flow meter for system monitoring.
• TDS meter for treated water salinity analysis.
• Electric float switch to control operation when the storage tank is full.
• Korean control panel for full system operation.
• UV sterilization unit (12 GPM) + bacterial filter for removal of dead microorganisms.
• All piping, valves, and fittings from El-Sherif brand or equivalent; high-pressure lines in polypropylene.

Terms & Warranty:

• Payment: 50% on contract – 40% on delivery – 10% on installation & commissioning.
• Maintenance: Separate contract.
• Technical support: Lifetime periodic reports & analysis.
• Warranty: 1 year.
• Prices exclude VAT.
• For well water: water analysis is required to ensure proper component selection.
• Option to upgrade RO membrane to original type for an additional cost (recommended for TDS > 2500 ppm).
