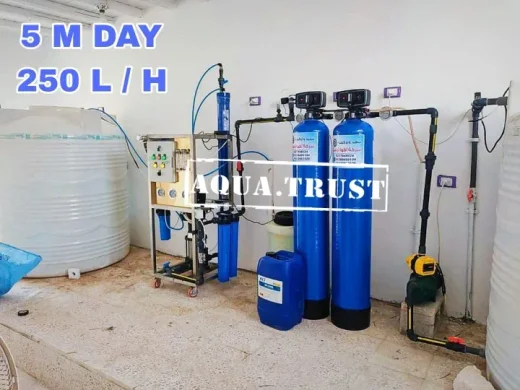

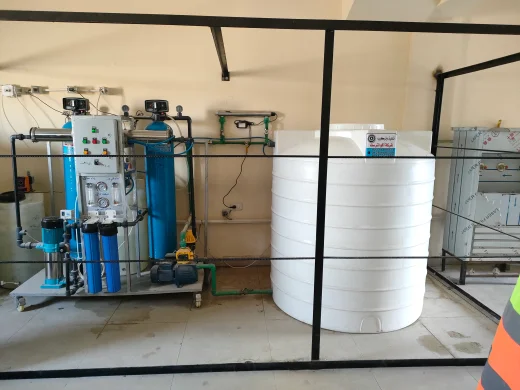

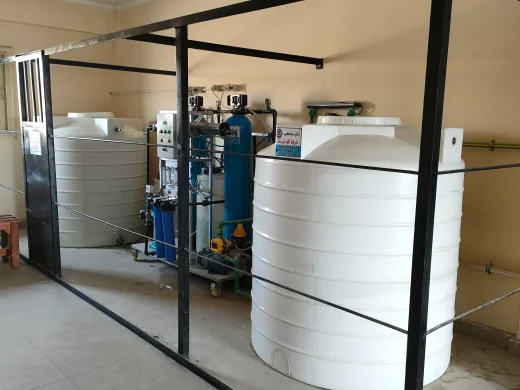

6 Cubic Meter/Day Desalination Plant – Aqua Trust

Desalination, Filtration & Sterilization Plant – Capacity: 6 m³/day (250 L/hour)

Aqua Trust offers a fully integrated water desalination, purification, and sterilization plant with a production capacity of 6 m³/day, ideal for industrial and commercial applications. The plant utilizes multi-stage treatment processes to remove impurities, reduce salinity by up to 99%, and ensure the highest water purity standards.

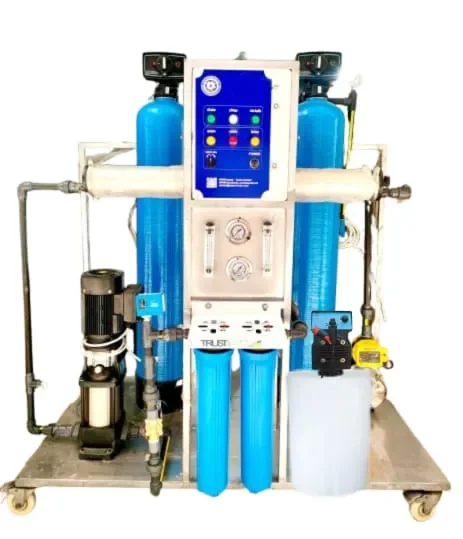

Main Components:

• Italian Stainless Steel Feed Pump (1 HP – Hidrotec/Dianapro or equivalent) with Automatic Flow Control.
• Automatic Sand Filter 10×54" with graded gravel and sand for turbidity removal.
• Automatic Carbon Filter 10×54" with Original Swedish Jacobi Carbon to remove chlorine, odors, and organic matter.
• Antiscalant dosing pump with a 25L chemical tank.
• Stainless Steel Frame for mounting all components.
• 20" Polypropylene Cartridge Filters (5-micron) for fine particle removal.
• High-Pressure Pump (1.5 HP) to feed membranes.
• 4" Stainless Steel Membrane Housing with RO membrane for 90-99% salt removal.
• Korean Electrical Control Panel for complete system operation.
• Ultraviolet (U.V) Sterilization Unit – 6 GPM.
• Pressure gauges and flow meters for monitoring treated and reject water flow.
• Electric float switch for automatic water level control in the storage tank.

Advantages:

• High salt and heavy metal removal efficiency.
• Complete disinfection from bacteria and viruses.
• Compact design with high-quality materials.
• Easy maintenance with lifetime technical support.

Payment Terms:

50% upon contract signing – 40% upon delivery – 10% after installation and commissioning.

Warranty: 1 year (excluding consumable parts).

Note: For well water sources, a water analysis is required to determine the proper configuration.
