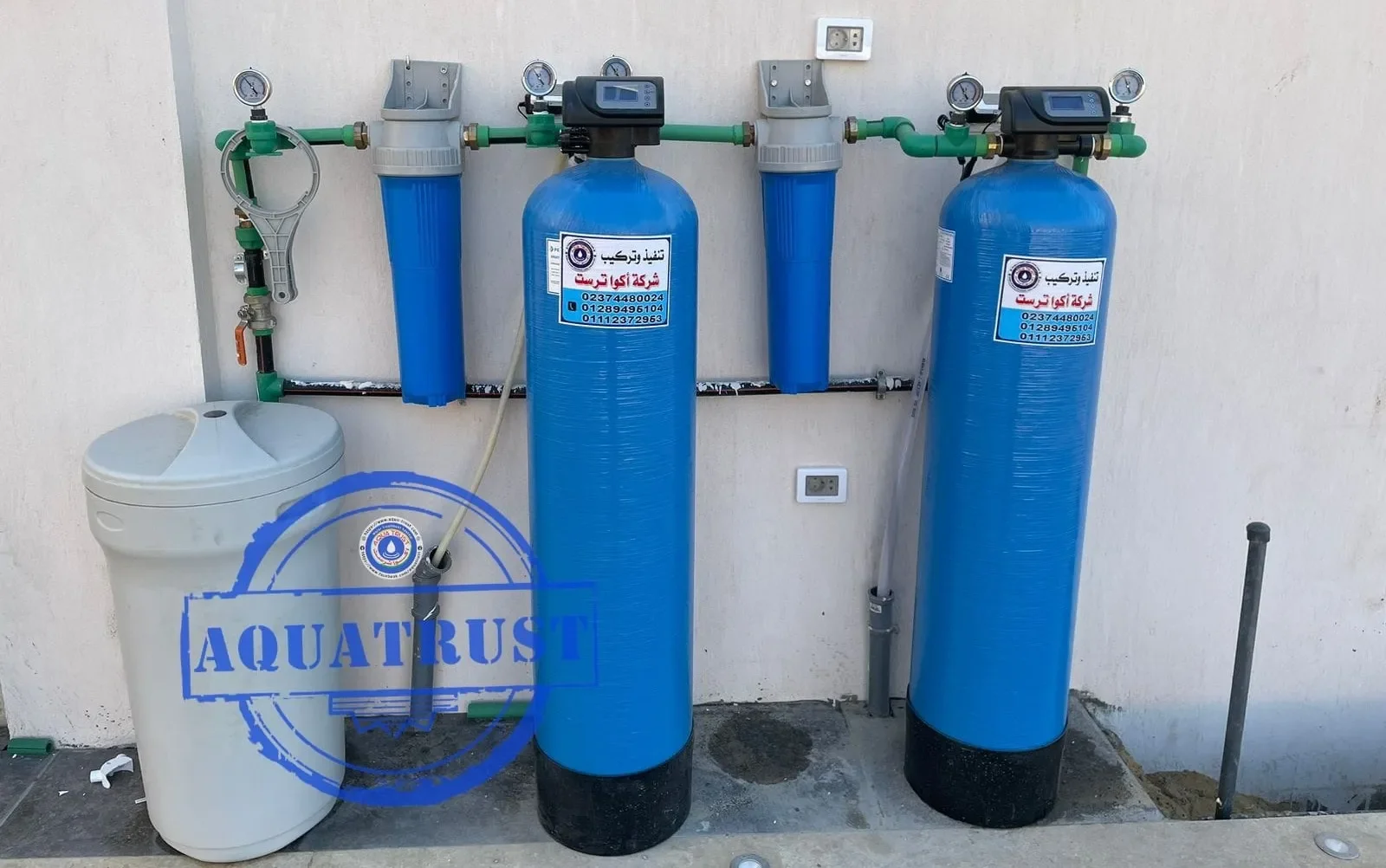

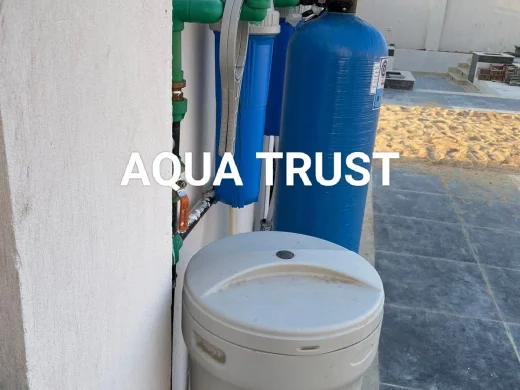

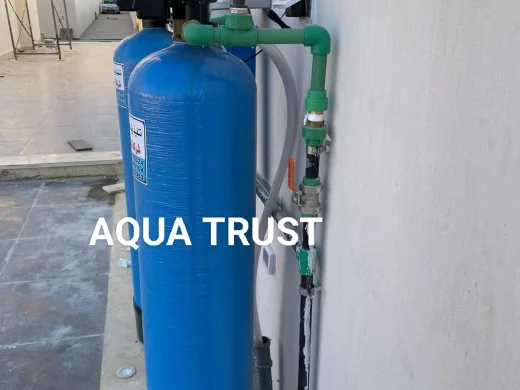

Filtration + Softener System Size 13×54

Filtration and Water Softening System on Main Inlet (1 Cubic Meter per Hour - 1000 Liters per Hour)

System Description:

This system is installed on the main water inlet of villas, chalets, apartments, restaurants, cafes, chillers, and boilers.

Purpose:

To remove turbidity, suspended solids, chlorine, algae, organic matter, odors, water hardness (calcium and magnesium salts), and rust.

Benefits:

Protect boilers, chillers, coffee and espresso machines, and cooling towers.

Operation:

The system operates automatically without manual intervention during backwash and rinse processes.

Components and Description:

• Multimedia Filter: Removes turbidity, suspended solids, and dirt using layers of gravel, sand, and carbon.
• Digital automatic control head
• Vessel size 13 × 54 (Kanther, Pentair brand)
• 703 kg gravel + graded sand (Egyptian quarries)
• 15 kg activated carbon (Jacob brand, Swedish origin)
• Upper distributor + lower distributor + riser
• Softener Filter: Removes water hardness (calcium and magnesium salts).
• Digital automatic control head
• Vessel size 13 × 54 (Kanther, Pentair brand)
• 75 liters resin (3 bags, Indian/American/Swedish origin)
• Upper distributor + lower distributor + riser
• Rust Removal:
• Two 20" jumbo housings, 5-micron filters, 50 cm height, 15 cm diameter
• Equipped with polypropylene cartridge and holder
• Salt Tank for Resin Regeneration:
• 60-liter salt tank
• Salt draw float
• 4 bags of salt

Payment Terms:

• 50% Contract
• 40% On Delivery
• 10% After Installation and Commissioning

Equipment and Support:

• Prices exclude VAT
• Technical support: Lifetime periodic reports and analyses
• Maintenance and spare parts: Separate contract
• Warranty: 1 year

Connections:

• 1" water inlet valve
• 1" water outlet valve
• 1" bypass valve
• Drain 1.5
• 2 power sockets
