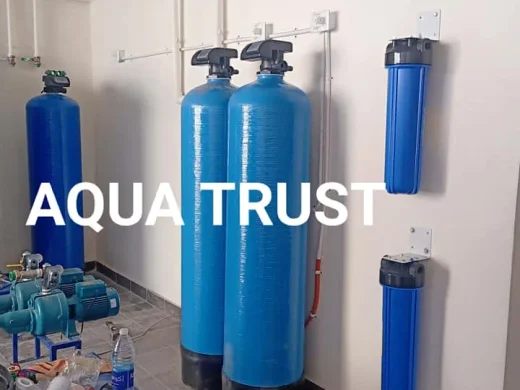

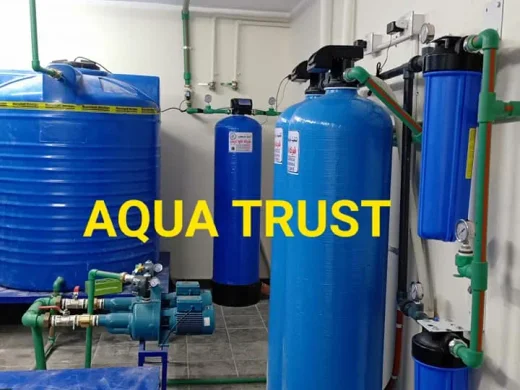

Main Automatic System - 3 Cubic Meter per Hour

Online Filtration System on Main Water Inlet (From 2 to 3 Cubic Meters per Hour)

Aqua Trust Water Treatment Systems

This system is installed on the main inlet for villas, chalets, apartments, places of worship, restaurants, and cafes.

Purpose: To remove turbidity, impurities, chlorine, chloramines, organic materials, odors, gases, and rust from the water.

Benefit: Protect washing machines, water heaters, all household appliances, protect hair from loss, and protect skin from chlorine-related irritation.

Operation System: Fully automatic operation without manual intervention in rinsing and cleaning processes.

Description and Components:

1. Sand Filter: Removes turbidity, impurities, and dirt.

• Digital automatic control head
• Vessel size 14" × 65" (Kansher, Pentair brand)
• 175 kg gravel + graded sand (Egyptian quarries)
• Upper distributor, lower distributor, riser

1. Carbon Filter: Absorbs chlorine, chloramines, organic materials, gases, and odors.

• Digital automatic control head
• Vessel size 14" × 65" (Kansher, Pentair brand)
• 502 kg gravel + graded sand (Egyptian quarries)
• 35 kg activated carbon (Jacob brand, Swedish origin)
• Upper distributor, lower distributor, riser

1. Rust Removal Filter:

• 2 Jumbo 20" housings (Height 50 cm, Diameter 15 cm)
• Equipped with 2 polypropylene cartridges and 2 holders
• 5-micron mesh size

Payment Method:

50% contract - 40% on delivery - 10% after installation and commissioning

Price: Excludes VAT

Warranty: One year

Technical Support: Periodic reports and analyses for life

Maintenance & Spare Parts: Separate contract

Accessories:

1- Water inlet 1" with valve

2- Water outlet 1" with valve

3- Bypass valve 1"

4- Drain 1.5

5- Electrical outlet 2
